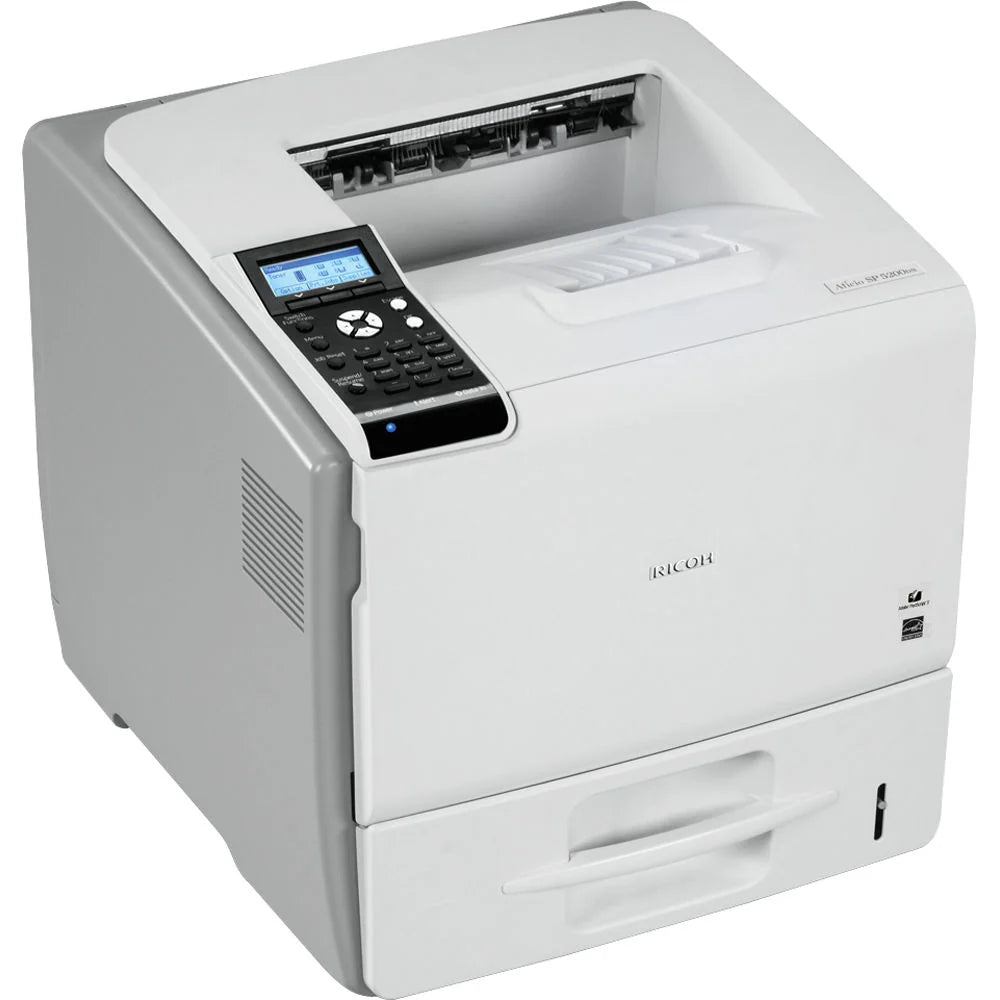

Ricoh Aficio SP 5200DN

General Overview

• Printer Type: Monochrome laser
• Model: Ricoh Aficio SP 5200DN
• Function: Print only (no scan/copy/fax)
• Control Panel: 4-line LCD with 12-key alphanumeric keypad
• Processor: 533 MHz
• Memory: 256 MB standard (expandable)

Performance

• Print Speed: Up to 47 pages per minute (ppm)
• First Page Out: Less than 7.5 seconds
• Warm-Up Time: 29 seconds or less
• Print Resolution: Up to 1200 × 600 dpi
• Monthly Duty Cycle: Up to 200,000 pages

Paper Handling

• Standard Input:
• 550-sheet paper tray
• 100-sheet bypass tray
• Optional Input:
• Up to four additional 550-sheet trays
• Maximum input capacity: 2,850 sheets
• Output Capacity: 500 sheets (face down)
• Duplex Printing: Automatic (standard)
• Supported Media Sizes:
• Up to 8.5" × 14" (Legal)
• Custom sizes supported
• Supported Media Types:
• Plain, recycled, thick, thin, transparency, envelopes, labels

Connectivity

• Standard Interfaces:
• USB 2.0 Type B
• USB Host (Type A)
• Ethernet 10/100Base-TX
• Optional Interfaces:
• IEEE 802.11a/g Wireless LAN
• Gigabit Ethernet
• IEEE 1284/ECP Parallel
• Network Protocols: TCP/IP, IPX/SPX, AppleTalk, Bonjour, SNMP, SMTP, FTP

Print Languages & Fonts

• Languages Supported:
• PCL 5e, PCL 6
• Adobe PostScript 3
• PDF Direct Print
• XPS
• IPDS (optional)
• Fonts:
• PCL: 45 fonts + 13 international fonts
• PostScript 3: 136 fonts
• IPDS: 108 fonts (optional)

Operating System Compatibility

• Windows: XP, Vista, 7, Server 2003/2008
• Mac OS: 8.6–9.2.x, OS X 10.2+
• Others: UNIX, Novell NetWare, SAP R/3, Citrix Presentation Server

Security & Management

• Security Features:
• Locked print
• User authentication
• Data overwrite (with optional HDD)
• Management Tools:
• Web Image Monitor
• Smart Device Monitor
• @Remote
• DeskTopBinder Lite

Supplies

• Toner Cartridge:
• All-in-One (AIO) cartridge
• Yield: Up to 25,000 pages
• Maintenance:
• Streamlined replacement process
• Low cost-per-page

Physical Specifications

• Dimensions (W × D × H): 16.5" × 17.7" × 15.2" (420 × 450 × 385 mm)
• Weight: Approx. 45.2 lbs (20.5 kg)

Power & Environmental

• Power Consumption:
• Operating: 891 W
• Energy Saver Mode: 10 W
• Sleep Mode: 1 W
• Energy Efficiency:
• ENERGY STAR® certified
• Low TEC value
