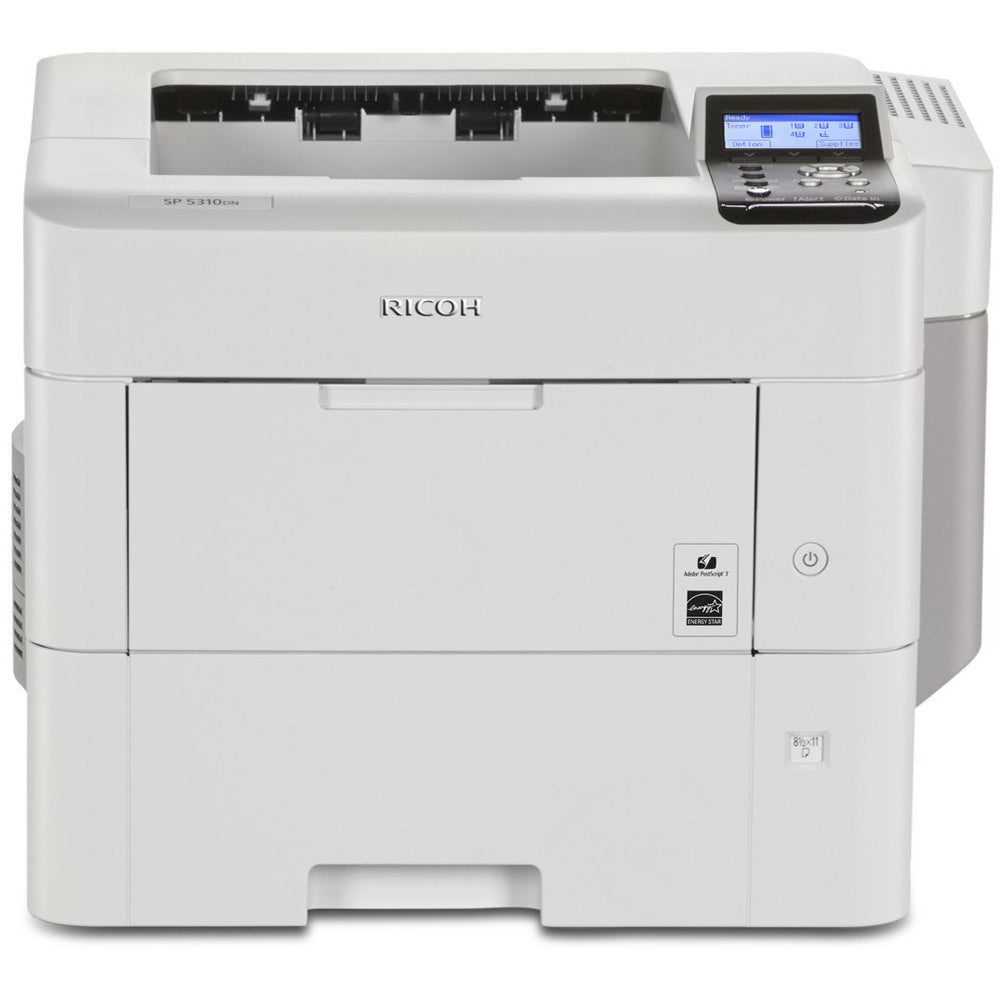

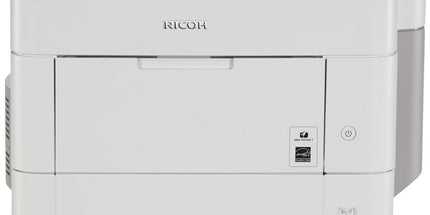

Ricoh SP 5300DN

General Overview

• Printer Type: Monochrome laser
• Function: Print only
• Control Panel: 4-line LCD with keypad
• Processor: 1.46 GHz
• Memory:
• Standard: 2 GB RAM
• Optional: 320 GB HDD

Performance

• Print Speed: Up to 50 pages per minute (A4)
• First Page Out: Approx. 5 seconds
• Warm-Up Time: Approx. 19 seconds
• Print Resolution: Up to 1200 × 1200 dpi
• Monthly Duty Cycle: Up to 250,000 pages

Paper Handling

• Standard Input Capacity:
• 500-sheet paper tray
• 100-sheet bypass tray
• Optional Input:
• Up to three additional 500-sheet trays
• Maximum Input Capacity: 2,600 sheets
• Output Capacity: 500 sheets
• Supported Media Sizes:
• Standard: A4, A5, A6, B5, Legal, Letter, Executive
• Custom sizes: 3.94" × 5.82" to 8.5" × 14"
• Supported Media Weights:
• Trays: 64–120 g/m²
• Bypass Tray: 60–220 g/m²
• Duplex Printing: Automatic (standard)

Connectivity

• Standard Interfaces:
• Gigabit Ethernet (1000/100/10BASE-T)
• USB 2.0 Type A ×2
• SD Card Slots ×2
• Optional Interfaces:
• Wireless LAN IEEE 802.11a/b/g/n
• USB 2.0 Type B
• IEEE 1284 Parallel Port
• NIC 2-Port Print Server

Print Languages & Fonts

• Languages Supported:
• PCL5e, PCL6
• Adobe® PostScript® 3™
• PDF Direct Print
• Optional: XPS
• Fonts:
• PCL: 45 scalable + 6 bitmapped + 13 international fonts
• PostScript 3: 136 fonts

Operating System Compatibility

• Windows: Vista, 7, 8, 8.1, 10, Server 2003–2012 R2
• Mac OS: 10.7 or later (PostScript only)
• UNIX/Linux: Sun Solaris, HP-UX, Red Hat, SCO, IBM AIX
• Others: SAP R/3, Citrix XenApp

Security & Management

• Security Features:
• Locked Print
• Data encryption
• HDD overwrite (with optional HDD)
• Network security: SSL/TLS, IPsec, IEEE 802.1X
• Management Tools:
• Web Image Monitor
• Device Manager NX
• @Remote
• SmartDeviceMonitor
• Streamline NX
• Card Authentication Package

Supplies

• Toner Cartridge:
• High-Yield Black Toner (407823)
• Yield: Up to 25,000 pages (ISO/IEC 19752)

Physical Specifications

• Dimensions (W × D × H): 420 × 410 × 345 mm
• Weight: Approx. 19.5 kg

Power & Environmental

• Power Consumption:
• Operation: 891 W
• Sleep Mode: 1 W
• Energy Efficiency:
• ENERGY STAR® certified
• Low TEC value
